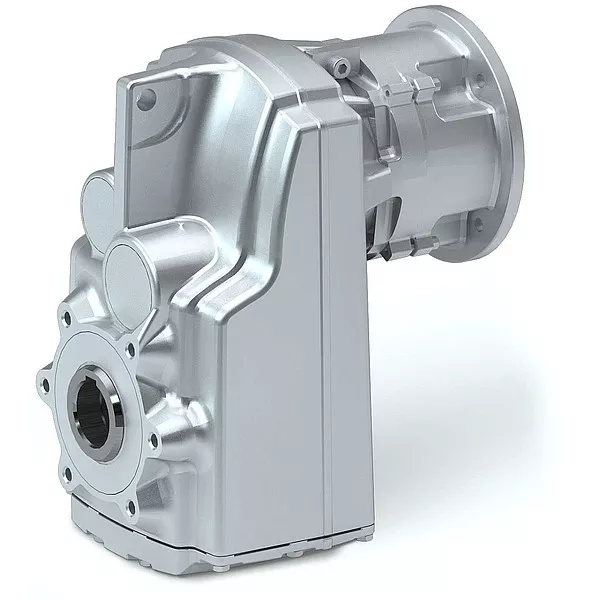

G500-S Shaft-Mounted Helical Gearboxes

Lenze



Axial Gearboxes



-Contact Us For Discount Pricing-

Efficiency and slimline design in the application

The slimline shaft-mounted helical gearboxes are characterized by high permissible radial forces, closely stepped ratios and a low backlash.

They are available in a 2-, 3- and 4-stage design with a torque of up to 19,000 Nm and a ratio of up to i=4,650.



Your advantages:



  • Slimline design saves installation space of the machine
  • Market standard shaft dimensions and standardized flanges for easy machine integration
  • High accuracy with axial output provide for the highest efficiency
  • High center distance

Can be combined with the following motors:

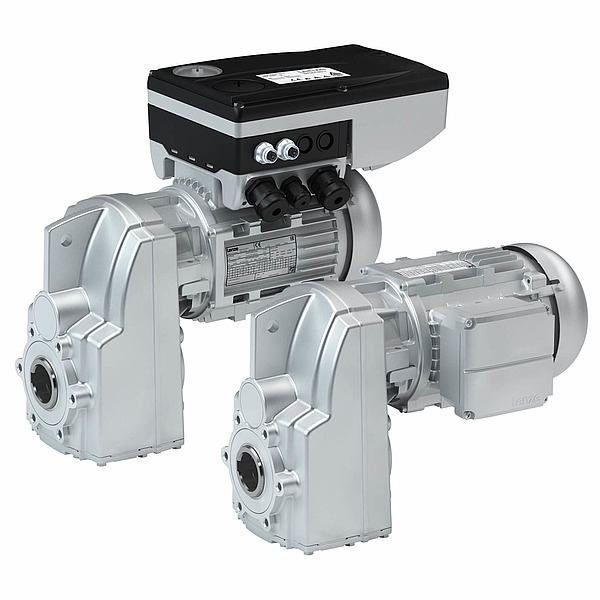

  • IE2 and IE3 three-phase AC motors m550-H, m550-P and m540-P according to the Ecodesign Directive in the power range from 0.12 to 55 kW. With integrated 8400 motec frequency inverters, they cover the power range from 0.12 to 7.5 kW.
  • Inverter-optimized MF three-phase AC motors in the power range from 0.55 to 22 kW
  • m300 Lenze Smart Motor, with a rated torque of 1.75 Nm or 5 Nm
  • MCS and m850 synchronous servo motors in the power range from 0.25 to 15.8 kW
  • MCA asynchronous servo motor in the power range from 0.8 to 20.3 kW
