ESV251N01SXB Lenze AC Tech

Lenze Drives



SM-Vector Series

NEMA Type 1

120/240 VAC



-Contact Us For Discount Pricing-

Specifications



  • Type: ESV251N01SXB
  • Input phase: 1(2)/N/PE AC
  • Rated power: 0.25 kW/0.33 HP
  • Input voltage: 120 V / 240 V
  • Output current: 1.7 A
  • Output frequency: 0-500 Hz
  • NEMA enclosure: Type 1
  • Approval: CE/cULus/C-Tick
  • Weight: 1.8 lb
  • Height: 7.5 in
  • Width: 3.9 in
  • Depth: 4.4 in

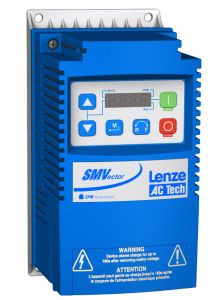

The SMV 0.33 HP (0.25 KW) drive features a 120/240 VAC 1Ø input in a NEMA 1 (IP31) Enclosure.



The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33…60 Hp (0.25 kW…45.0 kW) and global voltages from 120 VAC…600 VAC.

Documentation

Please feel free to contact us – We are ready to help with any application. Call us at (208) 322-2425
