Lenze Drives

SM-Vector Series

NEMA Type 1

120/240 VAC

[/vc_column_text][vc_column_text css=”.vc_custom_1612334067889{padding-right: 20% !important;padding-left: 20% !important;}”]

-Contact Us For Discount Pricing-

[/vc_column_text][/vc_column][/vc_row][vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”left” background_image_as_pattern=”without_pattern” css=”.vc_custom_1598478238325{padding-top: 50px !important;padding-right: 10% !important;padding-bottom: 25px !important;padding-left: 10% !important;}” z_index=””][vc_column width=”1/4″][/vc_column][vc_column width=”1/4″][vc_single_image image=”3699″ img_size=”full” alignment=”center” qode_css_animation=””][vc_empty_space][vc_empty_space][vc_row_inner row_type=”row” type=”full_width” text_align=”left” css_animation=””][vc_column_inner][vc_column_text]

Specifications

•  Type: ESV371N01SXB
• Input phase: 1(2)/N/PE AC
• Rated power: 0,37 kW/0.5 HP
• Input voltage: 120 V / 240 V
• Output current: 2,4 A
• Output frequency: 0-500 Hz
• NEMA enclosure: Type 1
• Approval: CE/cULus/C-Tick
• Weight: 1.8 lb
• Height: 7.5 in
• Width: 3.9 in
• Depth: 4.4 in

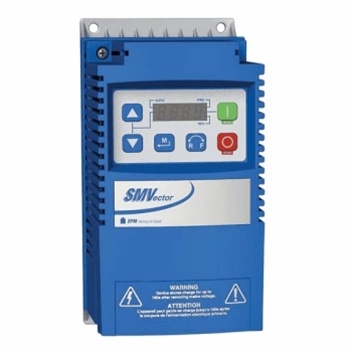

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=”1/4″][vc_column_text]The SMV 0.5 HP (0.37 KW) drive features a 120/240 VAC 1Ø input in a NEMA 1 (IP31) Enclosure.

The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33…60 Hp (0.25 kW…45.0 kW) and global voltages from 120 VAC…600 VAC.[/vc_column_text][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”left” background_image_as_pattern=”without_pattern” css=”.vc_custom_1598478238325{padding-top: 50px !important;padding-right: 10% !important;padding-bottom: 25px !important;padding-left: 10% !important;}” z_index=””][vc_column width=”1/4″][/vc_column][vc_column width=”1/4″][vc_empty_space height=”25px”][vc_column_text css=”.vc_custom_1617138381508{padding-right: 20% !important;padding-left: 20% !important;}”]
