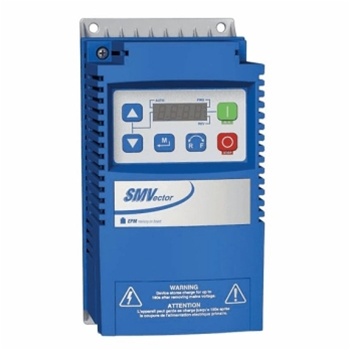

Lenze ESV152N06TXB

Lenze Drives



SM-Vector Series

NEMA Type 1

480/600 VAC



-Contact Us For Discount Pricing-

Specifications



  • Type: ESV152N06TXB
  • Input phase: 3/PE AC
  • Rated power: 1,5 kW/2 HP
  • Input voltage: 600 V
  • Output current: 2,7 A
  • Output frequency: 0-500 Hz
  • NEMA enclosure: Type 1
  • Approval: CE/cULus/C-Tick
  • Weight: 2.3 lb
  • Height: 7.5 in
  • Width: 3.9 in
  • Depth: 5.4 in

The SMV 2 HP (1.5 KW) drive features a 480/600 VAC 3Ø input in a NEMA 1 (IP31) Enclosure.



The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33…60 Hp (0.25 kW…45.0 kW) and global voltages from 120 VAC…600 VAC.
