ESV552N06TXB

Lenze Drives



SM-Vector Series

NEMA Type 1

480/600 VAC



-Contact Us For Discount Pricing-

Specifications



  • Type: ESV552N06TXB
  • Input phase: 3/PE AC
  • Rated power: 5,5 kW/7.5 HP
  • Input voltage: 600 V
  • Output current: 9 A
  • Output frequency: 0-500 Hz
  • NEMA enclosure: Type 1
  • Approval: CE/cULus/C-Tick
  • Weight: 6.0 lb
  • Height: 9.8 in
  • Width: 5.1 in
  • Depth: 6.3 in

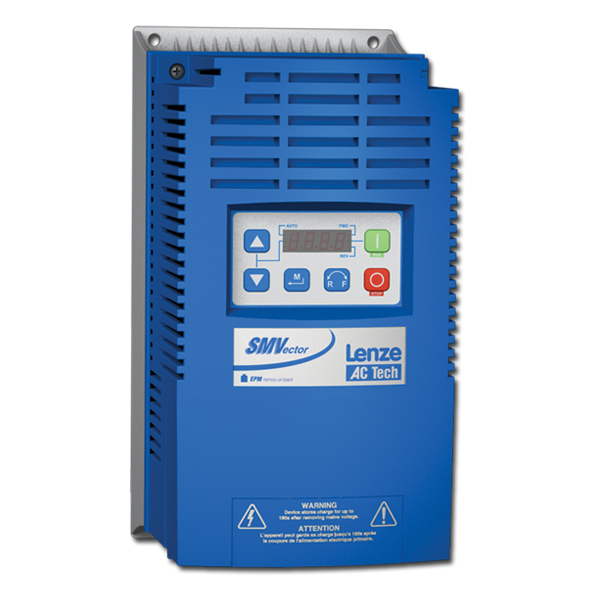

The SMV 7.5 HP (5.5 KW) drive features a 480/600 VAC 3Ø input in a NEMA 1 (IP31) Enclosure.



The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33…60 Hp (0.25 kW…45.0 kW) and global voltages from 120 VAC…600 VAC.

Please feel free to contact us – We are ready to help with any application. Call us at (208) 322-2425
