SEW Eurodrive MOVIMOT

SEW Eurodrive



Decentralized Drives



-Contact Us For Discount Pricing-

Features



  • Vector-oriented motor control
  • Full motor protection
  • Brake management
  • Ambient temperature of -30 °C/-20 °C to +40 °C
  • Control via binary signals: Inputs for CW/stop, CCW/stop, setpoint changeover, isolated signal relay, fixed setpoints, ramps for acceleration and deceleration
  • Control via fieldbus communication, with and without minicontrollers:
    • PROFIBUS
    • PROFIsafe
    • INTERBUS
    • Ethernet IP
    • DeviceNet™
    • CANopen
    • AS-Interface
    • PROFINET IO
    • SBUSPLUS/EtherCAT®
  • Startup modes: easy, expert, central via PLC
  • Use in stand-alone applications. In combination with the following options:
    • MLU..A: Local DC 24 V supply
    • MLG.1A: Local setpoint adjuster with DC 24 V supply
    • MBG11A: Setpoint adjuster for setting and displaying the setpoint frequency
    • MWA21A: Setpoint converter for interfacing analog setpoints (0 to 10 V, 0 to 20 mA, 4 to 20 mA) to RS-485
  • Use in decentralized installation in combination with field distributors:
    • MF…/Z.3.
    • MF…/Z.6.
    • MF…/…/Z.7.
    • MF…/…/Z.8.
    • MF…/…/Z.9.
  • 3-color LED signals operating and fault states
  • Approval: IEC or cULus

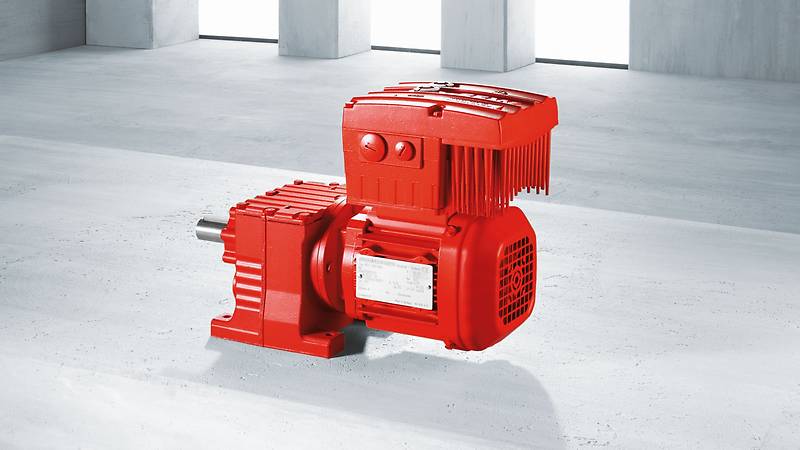

MOVIMOT® Gearmotor with Inverter



Brilliantly simple and simply brilliant: MOVIMOT®, the sleek combination of a gearmotor and a digital frequency inverter with a power range from 0.37 kW to4.0 kW. Flexible application thanks to the IP54 degree of protection; also available with IP55, IP65 or IP66.



Your proven path to decentralized drive technology: MOVIMOT®, a combination of a gearmotor and a digital frequency inverter. Available in all designs and mounting positions of the standard gearmotors, with or without a brake. A gearmotor and a digital frequency inverter matched to your connection voltage with 380 V to 500 V or 200 V to 240 V. MOVIMOT® is the power duo for applications in the power range from 0.37 kW to 4.0 kW. Even with an integrated frequency inverter, MOVIMOT® requires only marginally more installation space than conventional gearmotors.



Easy-to-use basic functions can be scaled up with a wide range of additional functions. The manual setpoint setting function allows you to easily start up the drive on site. Extended parameterization is also possible using the MOVITOOLS® MotionStudio software. Flexible connection technology with optional industrial plug connectors. Can be used worldwide thanks to country-specific approvals.

Catalog

Please feel free to contact us – We are ready to help with any application. Call us at (208) 322-2425
