SEW Eurodrive

Explosion Proof Gearmotors

Explosion-proof helical gear unit

RX series (single-stage)

• Highly efficient helical gear units in six sizes
• High output speeds
• Gear unit ratios up to i = 8.65
  • Available in foot-mounted or flange-mounted design

R series

• Twelve sizes allow for an optimum ratio between performance and space requirements
• Finely stepped gear unit ratios
• Available in foot-mounted or flange-mounted design
• Also available with reduced backlash

RM series

• Explosion-proof helical gear units with extended output bearing hub
• Specifically designed for agitating applications
• Ten frame sizes
  • Offer gear unit ratios up to i = 289.74
  • Allow high overhung and axial loads as well as bending moments

Explosion-proof synchronous servomotors

CMP.. series

• Compliant with Directive 94/9/EC (ATEX), or as of April 20, 2016 of the EU Directive 2014/34/EU (ATEX), equipment group II, equipment category 3
  • Category II 3GD, for use in zones 2 / 22
  • Category II 3D, for use in zone 22
  • also available with brake and Hiperface^® encoder (with electronic nameplate) in category 3D

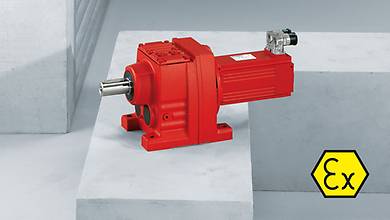

Explosion-proof helical servo gearmotors

A wide variety of sizes and an unlimited range of applications. The broad spectrum of explosion-proof R..CMP.. helical servo gearmotors can be specifically configured for all safety-relevant areas.

Power, dynamics, and precision with the explosion-proof gearmotors

Save time and benefit from the modular options for explosion-proof helical servo gearmotors from the R..CMP.. series. This means you will always have an explosion-proof drive that is optimally suited to your individual requirements.

SEW‑EURODRIVE also offers a number of practical configuration tools. You will soon discover that the explosion-proof helical servo gearmotors are the perfect fit for your applications. This is particularly true for compact solutions requiring a high level of precision. The R..CMP.. helical servo gearmotors enable particularly complex processes to be optimally implemented in potentially explosive system environments. This means a high level of performance, efficiency, and safety for all of your systems. You can also benefit from the wide range of accessories. This offers you even more flexibility and freedom in terms of planning and implementation.

The explosion-proof R..CMP.. helical servo gearmotors are always the right choice – particularly for lightweight system constructions. You save valuable installation space and get the most out of your installation options. Powerful peak torques of up to 6000Nm also give you real power and precise dynamics.

Certification according to ATEX includes equipment group II and equipment category 3. The combinations are available in II3GD and II3D design.
