K..CMP.. Series Helical Bevel Servo Gearmotor

[vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”left” background_image_as_pattern=”without_pattern” css=”.vc_custom_1598478238325{padding-top: 50px !important;padding-right: 10% !important;padding-bottom: 25px !important;padding-left: 10% !important;}” z_index=””][vc_column][vc_column_text]

SEW Eurodrive



Servo Gearmotors



[/vc_column_text][vc_column_text css=”.vc_custom_1612334067889{padding-right: 20% !important;padding-left: 20% !important;}”]

-Contact Us For Discount Pricing-

[/vc_column_text][/vc_column][/vc_row][vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”left” background_image_as_pattern=”without_pattern” css=”.vc_custom_1598478238325{padding-top: 50px !important;padding-right: 10% !important;padding-bottom: 25px !important;padding-left: 10% !important;}” z_index=””][vc_column width=”1/4″][/vc_column][vc_column width=”1/4″][vc_single_image image=”3876″ img_size=”full” alignment=”center” qode_css_animation=””][vc_empty_space][vc_column_text]

Feature

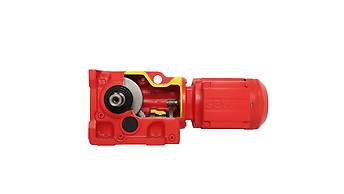

Helical-bevel gear units (two and three stages)

[/vc_column_text][vc_single_image image=”6757″ img_size=”full” alignment=”center” qode_css_animation=””][vc_column_text]

  • High efficiency
  • Gearing with high fatigue strength
  • Long, maintenance-free service life
  • Can be combined with our complete motor portfolio



Sizes K..37 to K..107 (three stages)



  • Double gear units for very low output speeds also available
  • Reduced backlash variant
  • Available variants:
    • Foot- or flange-mounted
    • B5 or B14 flange-mounted
    • Solid or hollow shaft
    • Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®



Sizes K..19 to K..49 (two stages)



  • High gear unit efficiency of over 90%
  • The aluminum housing of sizes K..19 and K..29 makes them particularly lightweight
  • Sizes K..39 and K..49 are particularly sturdy and torsionally stiff due to the gray-cast iron housing
  • Low-loss, two-stage design
  • Combination with small motors possible – result: compact, lightweight drive system
  • Three base strips ensure an optimum connection to the customer machine even in critical mounting situations
  • Available variants:
    • Foot- or B5 flange-mounted
    • Solid or hollow shaft
    • Hollow shaft with keyed connection or shrink disk



Synchronous servomotor



  • Highest dynamic characteristics throughout the entire CMP.. series thanks to the low-inertia rotor design and high overload capacity of the motors
  • Performance-optimized and extremely compact design thanks to the latest winding and magnet technology
  • Standstill torques from 0.5 Nm to 95 Nm
  • Optional CMPZ.. motor variant with increased rotor inertia for all applications with high load moments of inertia
  • High quality of concentric running characteristics
  • Direct mounting of the motor on a gear unit from our modular gear unit system

[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_column_text]

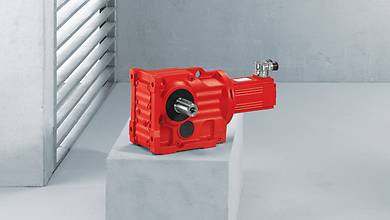

Helical-bevel servo gearmotors



A wide range of applications can be covered with this combination of servomotor and robust helical-bevel gear unit. Take advantage of the dynamics of the CMP.. motors and the power density of the helical-bevel gear unit.



Efficient helical-bevel servo gearmotors for many areas of application.



The K..CMP.. helical-bevel servo gearmotor merges the servo technology of the CMP.. synchronous servomotor series with the tried and tested helical-bevel gear units.



The powerful and highly dynamic servomotors from the CMP.. modular motor system ensure precise power delivery. The tried and tested helical-bevel gear unit of the K series provides robust performance and durability. They also have a particularly high degree of efficiency. This is applied in both directions of torque and for each input speed.



As a result, you can implement many applications with precision using the K..CMP.. helical-bevel servo gearmotors. Torques of 80 Nm to 8000 Nm can be implemented and systems can be operated with outstanding flexibility.[/vc_column_text][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”left” background_image_as_pattern=”without_pattern” css=”.vc_custom_1598478238325{padding-top: 50px !important;padding-right: 10% !important;padding-bottom: 25px !important;padding-left: 10% !important;}” z_index=””][vc_column width=”1/4″][/vc_column][vc_column width=”1/4″][vc_empty_space height=”25px”][vc_column_text css=”.vc_custom_1621010935942{padding-right: 20% !important;padding-left: 20% !important;}”]

Catalog

[/vc_column_text][vc_empty_space height=”25px”][vc_empty_space height=”25px”][/vc_column][vc_column width=”1/4″][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”center” background_image_as_pattern=”without_pattern”][vc_column]

Please feel free to contact us – We are ready to help with any application. Call us at (208) 322-2425
