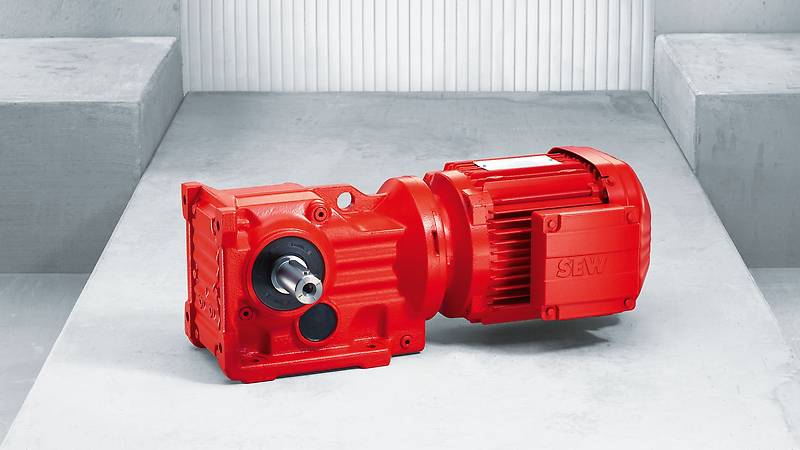

K Series Helical-Bevel Gear Units

SEW Eurodrive



Standard Gearmotors



-Contact Us For Discount Pricing-

Helical bevel gear units (two and three stages)



  • High efficiency
  • Gearing with high fatigue strength
  • Long, maintenance-free operating life
  • Can be combined with our complete motor portfolio



Sizes K..37 to K..187 (three stages)



  • Double gear units for very small output speed also available
  • Reduced backlash variant
  • Available variants:
    • Foot- or flange-mounted
    • B5 or B14 flange-mounted
    • Solid shaft or hollow shaft
    • Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®



Sizes K..19, K..29 and K..39, K..49 (two stages)



  • Low-loss, two-stage design with a high gearing efficiency of over 90%
  • The aluminum housing of sizes K..19 and K..29 makes them particularly lightweight
  • The sizes K..39 and K..49 are particularly sturdy and torsionally stiff due to the gray-cast iron housing
  • Three base strips ensure an optimum connection to the customer machine even in critical mounting situations
  • Available variants:
    • Foot- or B5 flange-mounted
    • Solid shaft or hollow shaft
    • Hollow shaft with keyed connection or shrink disk or TorqLOC® hollow shaft mounting system

K Series Helical-Bevel Gear Units



Thanks to their long maintenance-free operating life and their wear-free gearing, the helical-bevel gear units are – technically speaking – economical right-angle gear units. Their high level of efficiency, however, makes them real energy savers.



The compact design of all the gear units is most obvious in the helical-bevel gear units. This property is particularly interesting, for example, for machine applications with limited space available. Here, you need powerful drive technology with a compact design. This is just the right environment for the helical-bevel gear units with a torque range from 80 to 50,000 Nm.



With their high efficiency in both directions of rotation and at any input speed, these right-angle gear units are very energy-efficient. Their high-endurance gearing is wear-free and lasts a gear unit’s lifetime. For precise positioning tasks, you can use the K series gear units with reduced backlash.



The particularly sturdy sizes K..39 and K..49 complete the range of two-stage helical-bevel gear units. They set the standards together with sizes K..19 and K..29: four sizes allow for torques from 80 Nm to 500 Nm.
