SEW-EURODRIVE MOVITRAC B

[vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”left” background_image_as_pattern=”without_pattern” css=”.vc_custom_1598478238325{padding-top: 50px !important;padding-right: 10% !important;padding-bottom: 25px !important;padding-left: 10% !important;}” z_index=””][vc_column][vc_column_text css=”.vc_custom_1612334067889{padding-right: 20% !important;padding-left: 20% !important;}”]

-Contact Us For Discount Pricing-

[/vc_column_text][/vc_column][/vc_row][vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”left” background_image_as_pattern=”without_pattern” css=”.vc_custom_1598478238325{padding-top: 50px !important;padding-right: 10% !important;padding-bottom: 25px !important;padding-left: 10% !important;}” z_index=””][vc_column width=”1/4″][/vc_column][vc_column width=”1/4″][vc_single_image image=”4122″ img_size=”full” alignment=”center” qode_css_animation=””][vc_empty_space][vc_column_text]

Features



  • Compact frequency inverter for space-saving installation
  • Its straightforward operation saves time during startup
  • Broad voltage and power range
    • 3x AC 380 – 500 V: 0.25 kW – 90 kW
    • 3x AC 230 – 240 V: 1.5 kW – 30 kW
    • 1x AC 230 – 240 V: 0.25 kW – 2.2 kW
  • Overload
    • 125 % IN continuous duty
    • 150 % IN for at least 60 s
  • Safe Torque Off (STO) EN ISO 13849-1 PL d (as standard from 5.5 kW)
  • Adapted to your application
  • The design enables the integration of
    • Fieldbus interfaces
    • Functional safety technology options
    • Input/output extensions

[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_column_text]

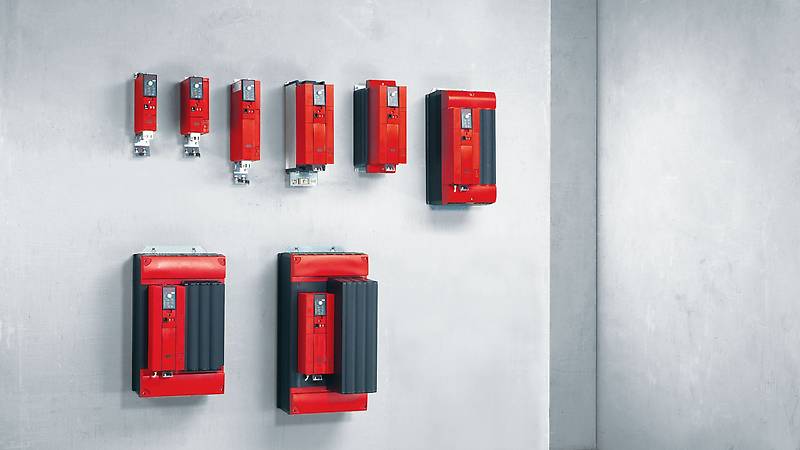

MOVITRAC® B Standard Inverter



Time is money. The MOVITRAC® B series frequency inverters help you save both. Their basic operation means that these standard inverters are quickly ready for use and perform your tasks extremely efficiently: from fan applications to materials handling and basic positioning.



Ideally suited for motors in the DR.. series, MOVITRAC® B frequency inverters control the speed of asynchronous and explosion protected EDR.. motors.



You can use the standard MOVITRAC® B design in materials handling, pump applications or in centrifuges. The modular concept with optional extensions and extensive accessories also gives you the flexibility to respond to specific requirements.

[/vc_column_text][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”left” background_image_as_pattern=”without_pattern” css=”.vc_custom_1598478238325{padding-top: 50px !important;padding-right: 10% !important;padding-bottom: 25px !important;padding-left: 10% !important;}” z_index=””][vc_column width=”1/4″][/vc_column][vc_column width=”1/4″][vc_empty_space height=”25px”][vc_column_text css=”.vc_custom_1618613633239{padding-right: 20% !important;padding-left: 20% !important;}”]

Technical Documentation

[/vc_column_text][vc_empty_space height=”25px”][vc_empty_space height=”25px”][/vc_column][vc_column width=”1/4″][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”center” background_image_as_pattern=”without_pattern”][vc_column]

Please feel free to contact us – We are ready to help with any application. Call us at (208) 322-2425
