MOVITRAC LTP-B

-Contact Us For Discount Pricing-

MOVITRAC® LTP-B Standard Inverter

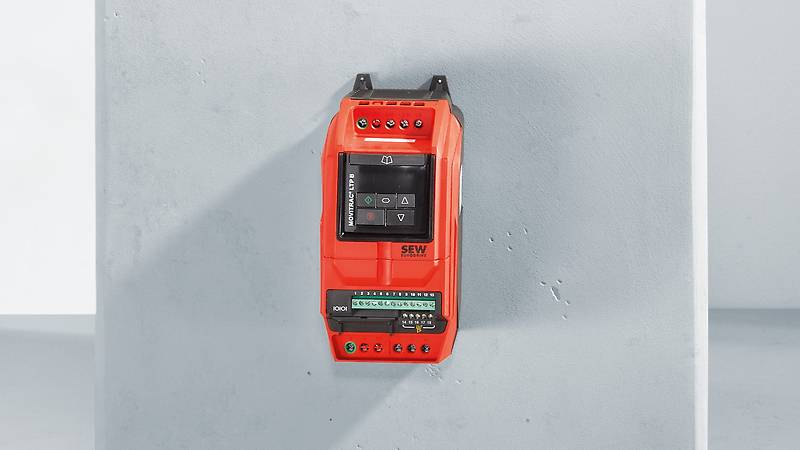

It fits in any control cabinet and starts running straight away – theMOVITRAC® LTP-B frequency inverter in IP20. Compact design and simplified handling give you a versatile range of possible applications and make startup quick.
Connect, choose your motor, perform the automatic calibration and your application will just run and run. Designed and developed for open-loop speed control of synchronous and asynchronous motors, theMOVITRAC® LTP-B with IP20 housing is available with up to 15 kW of power. This allows you to complete your tasks in conveyor applications, hoists, fans and pumps with a high level of energy efficiency – even without an encoder.
Why make it complicated when it could be so easy? That’s what they were thinking when they designed the range of functions and the operational principle for the MOVITRAC® LTP-B series. The result? Compact functionality and an integrated control plate that makes handling easy for you. Reduce your energy costs, not your power! Thanks to the energy saving function in the partial load rand and when idling.
And thanks to the STO (Safe Torque Off) safety function, these frequency inverters are not just safe and compact – they are also economical and efficient.

Features

  • Housing degree of protection: IP20, IP55/NEMA 12k optional
  • Control plate for easy startup
  • Power range: 0.75 kW to 15 kW
  • Line voltages
    • AC 1x 230 V (2,2 kW)
    • AC 3x 230 V (5,5 kW)
    • AC 3x 400 V (11 kW)
    • AC 3x 575 V (15 kW)
  • Overload capacity up to 175%
  • Open-loop speed control of synchronous and asynchronous motors, without encoder
  • Motor control modes: V/f, VFC, VFC torque
  • Integrated EMC filter for AC 230 V and AC 400 V designs
  • Analog and digital interfaces

Please feel free to contact us – We are ready to help with any application. Call us at (208) 322-2425
