MOVIMOT

-Contact Us For Discount Pricing-

Features



  • Ambient temperature from –30 °C or –20 °C to +40 °C
  • Control via binary signals: Inputs for CW/stop, CCW/stop, setpoint changeover, isolated signal relay, fixed setpoints, ramps for acceleration and deceleration
  • Control via fieldbus communication, with and without minicontrollers:
    • PROFIBUS®
    • PROFIsafe
    • INTERBUS
    • DeviceNETTM
    • CANopen
    • AS-Interface
    • PROFINET® IO
    • SBUSPLUS/EtherCAT®
  • Use in stand-alone applications. In combination with the options:
    • MLU..A: Local DC 24 V supply
    • MLG.1A: Local setpoint adjuster with DC 24 V supply
    • MBG11A: Setpoint adjuster for setting and displaying the setpoint frequency
    • MWA21A: Setpoint converter for interfacing analog setpoints (0 to 10 V, 0 to 20 mA, 4 to 20 mA) to RS-485
  • 3 color LED signalizes operating and fault states
  • Approval: IEC or cULus

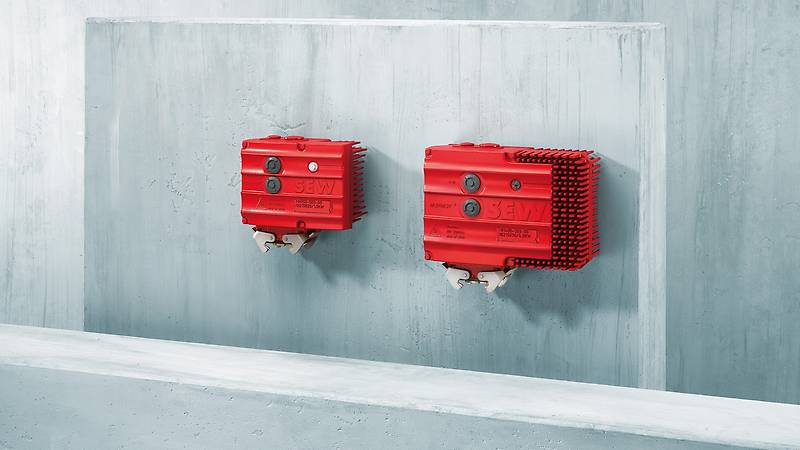

MOVIMOT® Standard Inverter



For field operation: MOVIMOT®, the digital frequency inverter with a power range of 0.37 to 4.0 kW. Flexible application thanks to IP54 degree of protection, also optionally available in IP55, IP65 or IP66.



Standard inverters for direct mounting on the motor. Thanks to the modular concept, the MOVIMOT® D series can be combined as standard with the DR.. series AC motors with different levels of efficiency.



Mounting close to the motor is also possible. There are different diagnostics options available. A 3 color LED signalizes operating and fault states. The inverter is equipped with a diagnostic interface, an RS-485 serial interface and much more. This frequency inverter is flexibly available with a connection voltage of 200 V to 240 V or 380 V to 500 V.
