MOVIPRO ADC

-Contact Us For Discount Pricing-

Features



  • Power range of 2.2 kW to 15 kW
  • Speed control and positioning
  • Optional encoder feedback for motors and tracks
  • Integrated brake control with different brake voltages
  • Optional regenerative power supply
  • Fieldbus interfaces: PROFIBUS, PROFINET, PROFIsafe, EtherNet/IP, Modbus/TCP, DeviceNet
  • Integrated inputs/outputs 12 DI + 4 DIO (DI=Digital in, DIO=Digital in/out)
  • Optional RS485, SBus, and SBUSplus interfaces for external actuators and sensors
  • Plug-in interfaces for energy, motors (power), and encoders (signals)
  • Local memory for parameters
  • IP54 protection type
  • Robust aluminum housing
  • Optional maintenance switch
  • Optional, removable connection unit for linear power bus
  • Safe Torque Off (STO) up to category 3 and PL d according to EN ISO 13849-1
  • Optional: Secure PROFIsafe bus system
  • Optional: Safe brake control (SBC)

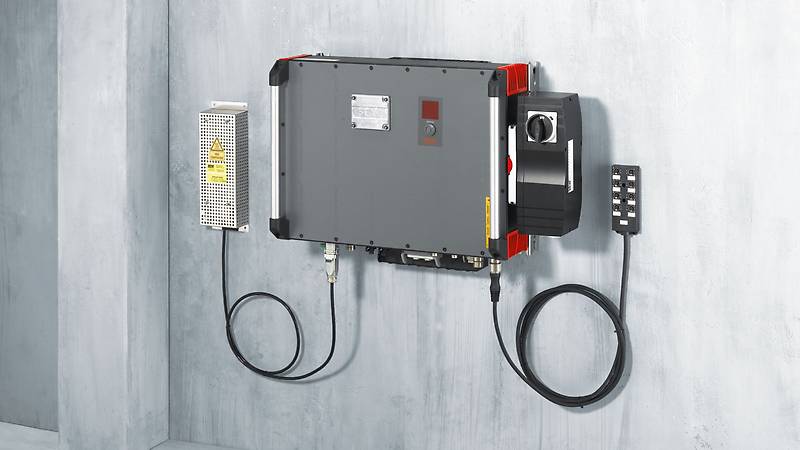

MOVIPRO® ADC Application Inverter



With its freely programmable drive and application inverter, MOVIPRO® ADC brings your production system architecture up to date – regardless of whether you use stationary or mobile materials handling technology.



Do your mobile and stationary materials handling systems need drive systems that are compact and resistant to vibration? Do you require perfectly synchronized multi-axis movements? Are integrated safety functions an absolute must for you?



The decentralized MOVIPRO® ADC drive inverter for application and positioning control meets all of these requirements, and more: Because it can be programmed freely (in accordance with IEC 61131-3 and PLCopen), you can implement application-specific and complex functions in a flexible way. In addition to multi-axis synchronization, precise, local coordination of multiple actuators and sensors is also possible.
