MOVI-FIT Basic

[vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”left” background_image_as_pattern=”without_pattern” css=”.vc_custom_1598478238325{padding-top: 50px !important;padding-right: 10% !important;padding-bottom: 25px !important;padding-left: 10% !important;}” z_index=””][vc_column][vc_column_text css=”.vc_custom_1612334067889{padding-right: 20% !important;padding-left: 20% !important;}”]

-Contact Us For Discount Pricing-

[/vc_column_text][/vc_column][/vc_row][vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”left” background_image_as_pattern=”without_pattern” css=”.vc_custom_1598478238325{padding-top: 50px !important;padding-right: 10% !important;padding-bottom: 25px !important;padding-left: 10% !important;}” z_index=””][vc_column width=”1/4″][/vc_column][vc_column width=”1/4″][vc_single_image image=”4148″ img_size=”full” alignment=”center” qode_css_animation=””][vc_empty_space][vc_column_text]

Features



  • FieldPower® contact block* for energy distribution with modern and reliable connector technology
  • Simple connection and wiring technology
  • Consistent integration of power distribution components in the housing of the drive unit
  • Consistent use of standard plug connectors for control and motor connection
  • Extremely short assembly and installation times
  • When using AS-Interface, two sensors can, in addition to the drive function, be connected to the unit for direct communication with the system controller (at no additional costs)

[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_column_text]

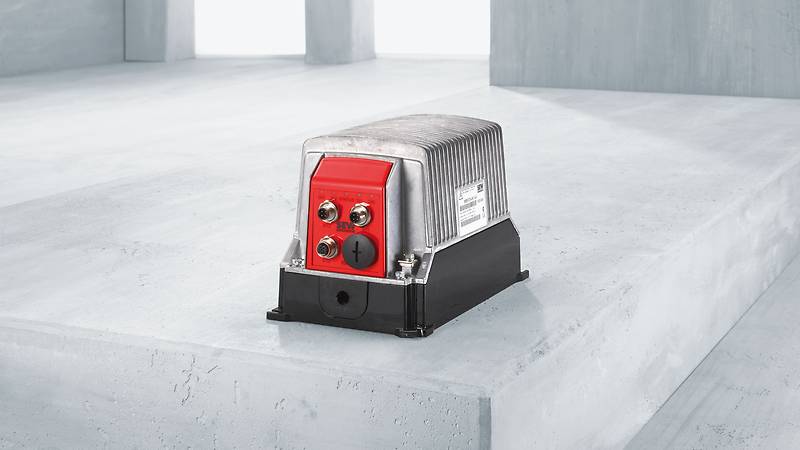

MOVIFIT® Basic



Minimum effort – maximum benefit: With the decentralized MOVIFIT® basic motor starter. It is ideally suited as a reversing starter or as a dual-motor starter. For your intralogistics applications.



For efficient materials handling technology: MOVIFIT®basic, the decentralized basic motor starter, available as a reversing starter or as dual-motor starter.



Less is more: Sew Eurodrive has reduced the MOVIFIT® basic to include only the functions and features necessary, and its design means that it is the ideal motor starter for the lower function range. It covers the 4 kW or 2 x 2.2 kW power range.



The motor starter is available as a reversing starter or as a dual-motor starter. The reversing starter enables motor operation in two directions of rotation. Alternatively, you can operate the dual-motor starter with two motors that convey the material flow in one direction independently of one another. In this extremely efficient concept, 2 motors share one MOVIFIT® basic motor starter.



The energy for AC 3 x 400 V is distributed via the FieldPower® terminal from Weidmüller, which is integrated in the unit. Two sensors can be connected to the unit in addition to the drive function when using AS-Interface. These are signaled to the system controller via AS-Interface master without additional costs and the signals can then be processed in the system controller.

[/vc_column_text][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”left” background_image_as_pattern=”without_pattern” css=”.vc_custom_1598478238325{padding-top: 50px !important;padding-right: 10% !important;padding-bottom: 25px !important;padding-left: 10% !important;}” z_index=””][vc_column width=”1/4″][/vc_column][vc_column width=”1/4″][vc_empty_space height=”25px”][vc_column_text css=”.vc_custom_1618614595799{padding-right: 20% !important;padding-left: 20% !important;}”]

Technical Documentation

[/vc_column_text][vc_empty_space height=”25px”][vc_empty_space height=”25px”][/vc_column][vc_column width=”1/4″][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row css_animation=”” row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” angled_section=”no” text_align=”center” background_image_as_pattern=”without_pattern”][vc_column]

Please feel free to contact us – We are ready to help with any application. Call us at (208) 322-2425
