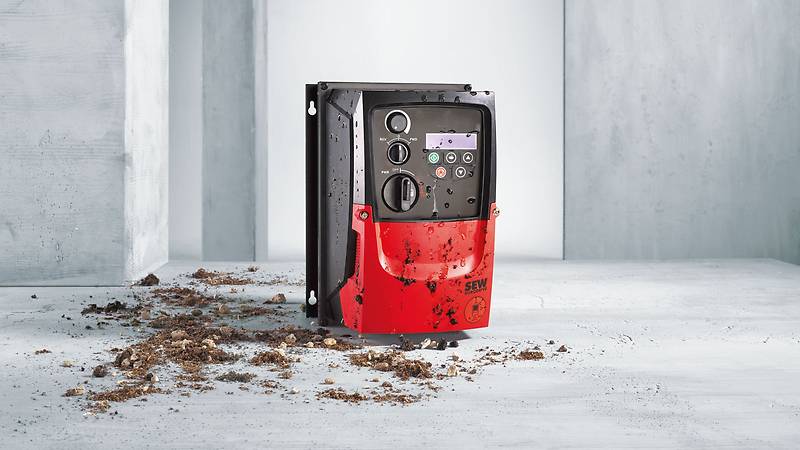

MOVITRAC LTE-B 1P66 Enclosure

• Integrated control plate for easier handling
• Pre-configured to match the respective motor
• Integrated EMC filter and integrated help card
• Energy saving function
• Extra-quiet pulsed voltage supply up to 16 kHz
• 40 configurable parameters
• Connection to fieldbuses via DFx gateways
• Approved in accordance with UL508, C22.2 no. 14
• Parameter module for data backup
• Also available with IP20 degree of protection

The MOVITRAC^® LTE-B field housing with IP66/NEMA 4x protection is ideal for use in harsh environments. The frequency inverters from this series enable simple operation and user-friendly functions for open-loop speed control of asynchronous motors. Matches your requirements: The 3 sizes of the MOVITRAC^® LTE-B for power ranges from 0.37 kW to 7.5 kW and line voltages of 115 V, 230 V and 400 V.

MOVITRAC^® LTE-B in IP66 quickly and economically solves simple conveyor applications. For instance, in small, modular conveyor lines and in fans and pumps. With an extra-quiet pulsed voltage supply up to 16 kHz, it is ideal for use at manual workstations. Parameterisation is even simpler thanks to the integrated control plate. Of course, a control cabinet version of the MOVITRAC® LTE-B basic inverter is also available. The MOVITRAC^® LTE-B can also be expanded with an optional external control plate.

These frequency inverters communicate with the DFx gateways via all commercially available fieldbuses.
