MOVITRAC LTP-B 1P55 Enclosure

-Contact Us For Discount Pricing-

Features



  • Housing degree of protection: IP55/NEMA 12k, IP20 optional
  • Control plate for easy startup
  • Power range: 0.75 kW to 160 kW
  • Line voltages
    • AC 1 x 230 V (2,2 kW)
    • AC 3 x 230 V (75 kW)
    • AC 3 x 400 V (160 kW)
    • AC 3 x 575 V (110 kW)
  • Overload capacity up to 175%
  • Open-loop speed control of synchronous and asynchronous motors, without encoder
  • Motor control modes: V/f, VFC, VFC torque
  • Integrated EMC filter for AC 230 V and AC 400 V designs
  • Analog and digital interfaces
  • PID controller
  • Hoist function
  • Fieldbus connection
    • DFE32B: PROFINET IO
    • LT FE 31A: Modbus TCP
    • LT FE 33A: EtherNet/IP
    • LT FE 24A: EtherCAT®
    • LT FP 11A: PROFIBUS DPV1
    • LT FE 32A: PROFINET IO
    • LT FE 25A: POWERLINK
    • LT FD 11A: DeviceNet
    • Integrated in basic unit
      • CANopen
      • MODBUS RTU
      • SBus (CAN-based SEW-EURODRIVE system bus)

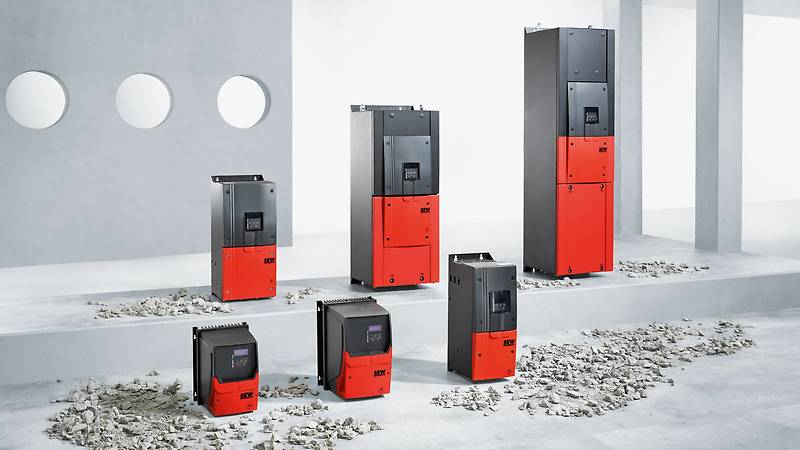

MOVITRAC® LTP-B Standard Inverter in IP55



Introducing MOVITRAC® LTP-B, the all-rounder for specialist field applications. Dusty and damp ambient conditions pose no problem for these frequency inverters with the IP55/NEMA 12k housing.



Do you need a frequency inverter for your drive solutions that can be installed outside the control cabinet? One that is also easy to operate and can handle open-loop speed control of synchronous and asynchronous motors in power ranges up to 160 kW, even without an encoder? Then you should check out the functionality of the all-rounder in the field: the MOVITRAC® LTP-B in IP55/NEMA 12k. It also offers a guaranteed overload capacity of 175%.



Thanks to the STO (Safe Torque Off) safety function and the integrated EMC filter, you can design your application to be not only compact and safe, but economic and efficient, too.



The large MOVITRAC® LTP-B series of frequency inverters is also available in IP20 degree of protection with a power of up to 15 kW (sizes 2 and 3) for installation in control cabinets.
