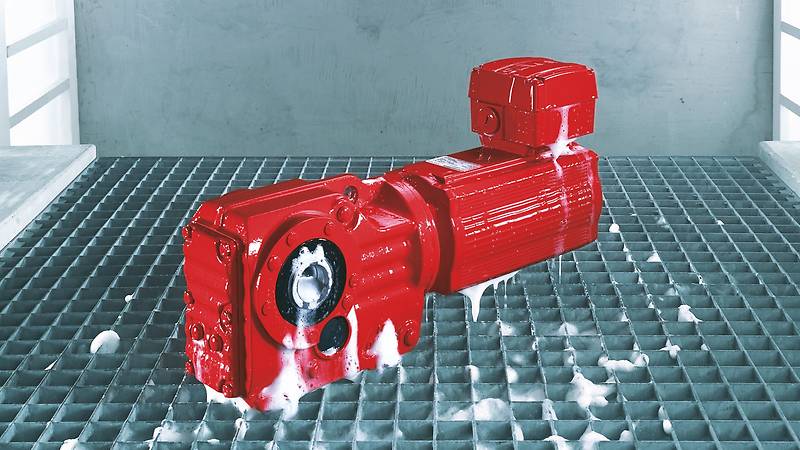

SEW-EURODRIVE DAS Aseptic Motor

Be it production, filling or packaging: with the aseptic motors of the DAS.. series and the drive package ASEPTIC^plus® you can reliably operate your machines or systems:

• DAS.. series for dry hygienic areas:
  • Fanless motor, pure convection cooling, resulting in zero air turbulences
  • Smooth surfaces; no dirt build-up
  • Enclosure IP66 (brakemotors IP65)
  • KS internal coating as motor corrosion protection
  • Surface protection OS2 to OS4 possible
  • Motor protection thermistor in thermal class F, TH optional (thermocontact)
  • IS plug connector
• Drive package ASEPTIC^plus® with additional preventive measures for use in hygienic production areas:
  • Motors in degree of protection IP69K (brakemotors IP65)
  • Surface protection OS4
  • Contour recesses filled with natural rubber
  • Double oil seals (if possible) at the output made of FKM
  • Stainless steel breather valve
  • Pressure compensation membrane on the motor terminal box
  • Cable entry with screw plugs made of stainless steel
  • Gear unit output shaft made of stainless steel as solid shaft, hollow shaft with key or TorqLOC^® for gear unit types: R17-97, F37-97, K37-97, S37-97 and W30
  • All fastening parts at the output shaft, such as screws, keys, shrink disk, etc., made of stainless steel

Sew Eurodrive develops and produces aseptic motors with special equipment for hygienically sensitive production areas. The DAS.. series is ideal for use in your sensitive production areas such as in the pharmaceutical, cosmetics or food and beverage industry. Even if an absolutely clean production environment is prescribed, you can safely use the motors in connection with the drive package ASEPTIC^plus®.

Two significant properties of the DAS.. series motors are sure to interest you:

1. In contrast to standard motors, which are equipped with cooling fins, the surface of our aseptic motors is as smooth as is possible. This makes them dirt-repellent.

2. Standard motors have a fan, our motors do not: they are convection-cooled. This means that they cause no air turbulences and, consequently, do not distribute any germs and bacteria.

The cleaning processes for the production system that are essential in those types of production areas are just as problem-free and practicable. Equipped with the appropriate surface and corrosion protection measures, you can safely apply aggressive cleaning agents and disinfectants with these motors or the drive package ASEPTIC^plus® . This is because the painting and materials used withstand the regular cleaning procedures.
